What is the difference between GC-MS and GC-MS/MS?

Gas chromatography-mass spectrometry (GC-MS) and gas chromatography-tandem mass spectrometry (GC-MS/MS) are advanced analytical techniques that represent the cornerstone of modern analytical separation science. They are widely used in various scientific fields such as pharmaceuticals, environmental sciences, clinical toxicology, and multi-residue food safety screening. While both methods utilize gas chromatography (GC) for high-resolution volatile component separation and mass spectrometry (MS) for identification, they differ greatly in their operating mechanisms, hardware configurations, ion filtering capabilities, limits of detection, and applications. To avoid compromised data quality or unnecessarily inflated capital expenditure, mastering the underlying mechanisms of peak separation and mass resolution is non-negotiable. Analysts must first become proficient in how to read gc chromatogram analysis guide to accurately decipher how raw analytical separations translate into quantifiable target peaks under single and multi-stage mass extraction.

What is GC-MS?

Single-stage gas chromatography-mass spectrometry (GC-MS) combines the volatile separation power of a gas chromatograph with a single-stage mass analyzer (typically a single quadrupole). Developed as a laboratory workhorse since the 1970s, it functions by identifying compounds based on reproducible electron ionization fragmentation patterns and matching them against standardized spectral libraries (such as NIST or Wiley).

Sample Preparation

Solid Phase Extraction (SPE) or Liquid-Liquid Extraction (LLE) is often used to remove matrix interferences and enhance sensitivity. Derivatization (e.g., methylation, trimethylsilylation) can improve the volatility of polar or thermally labile compounds. For highly demanding matrices, utilizing high-purity, certified chromatography vials is critical to prevent the introduction of plasticizers, siloxanes, or contaminant ghost peaks into the injector.

How it Works and Data Formats

GC-MS combines gas chromatography with mass spectrometry for the analysis of complex mixtures. During this process, a sample is vaporized in a heated inlet and sent through a chromatographic column using an inert gas (typically helium or hydrogen) as the mobile phase. When the compounds are separated based on their volatility (boiling point) and interaction with the stationary phase, they are introduced into a mass spectrometer via a heated transfer line.

Once inside the single mass analyzer, data is typically collected in one of two major modes: Full-Scan mode or Selected Ion Monitoring (SIM) mode. In Full-Scan mode, the mass spectrometer continuously scans across a broad mass-to-charge ratio (m/z) range, collecting 10 to 20 spectra per second. This yields a Total Ion Chromatogram (TIC), representing the sum of all signals reaching the detector, allowing for universal, untargeted identification. Analysts can extract specific data post-acquisition to generate an Extracted Ion Chromatogram (EIC) to selectively trace specific structural families. Conversely, in SIM mode, the mass analyzer is locked onto a few predefined target m/z ions. Because the detector spends more time dwelling on these specific masses rather than scanning a wide range, chemical noise is significantly minimized, lowering detection limits down to the picogram range.

Components of GC-MS

• Gas Chromatograph: Separates volatile compounds in a mixture based on their boiling point and affinity for the stationary phase.

• Mass Spectrometer: Detects and identifies separated compounds by measuring the mass-to-charge ratio (m/z). The resulting mass spectrum provides information about the molecular weight and structure of the analytes. To protect this high-vacuum environment from air leaks, using ultra-low-bleed gc septa at the injection port is imperative.

Novel Ionization Sources

Soft ionization techniques (e.g., APCI, DART) reduce fragmentation and enhance molecular ion signals. Portable GC-MS systems are now used for on-site hazardous substance detection and environmental monitoring.

Applications of GC-MS

• Forensic analysis: Identifying drugs, toxins, and other substances in biological samples.

• Environmental monitoring: Analyzing contaminants and volatile organic compounds (VOCs) in air, water, and soil.

• Pharmaceuticals: Quality control, residual solvent analysis, and the drug development process. For a deeper understanding of routine workflows, readers can explore the lc-ms vs gc-ms guide.

• Food safety: Detecting contaminants and verifying food authenticity when dealing with relatively clean matrices.

• Petroleum Industry: Composition analysis of cracked and distilled oils, quantification of gas-phase components.

• Metabolomics: Qualitative and quantitative analysis of small-molecule metabolites, employing multivariate statistics to discover biomarkers.



What is GC-MS/MS?

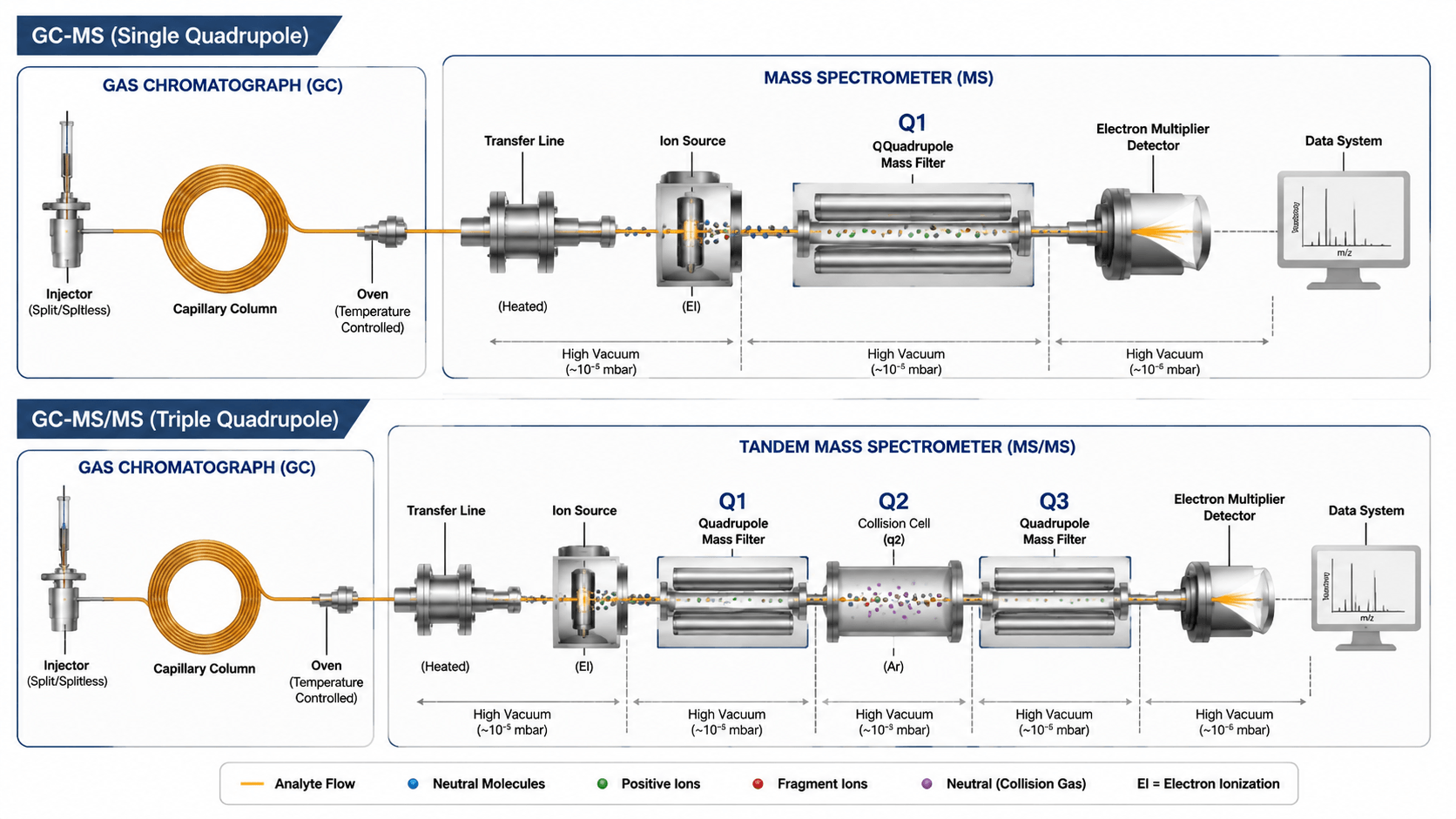

Tandem mass spectrometry (GC-MS/MS) represents a major multi-dimensional architectural evolution. By placing multiple mass analyzers in series, typically configured as a triple quadrupole (TQMS) system designated as Q1-Q2-Q3, the system inserts an explicit fragmentation step between two separate stages of mass filtering. This multi-stage isolation effectively strips away the chemical background noise that frequently compromises single-stage instruments.

How it Works and Scanning Modes

GC-MS/MS enhances the capabilities of traditional GC-MS by incorporating tandem mass spectrometry. This means that after the initial mass spectrometry analysis (MS), the selected ions are further fragmented in a second stage of mass spectrometry analysis (MS/MS). To achieve this, the instrument relies on four distinct scanning mechanisms:

• Product Ion Scan: The first quadrupole (Q1) is set to fixed SIM mode to isolate a specific precursor ion. This ion enters the collision cell (Q2), where collision-induced dissociation (CID) occurs via an inert gas. The third quadrupole (Q3) then scans a range of masses to detect all resulting product ion fragments. This is exceptionally powerful for structural elucidation and qualitative structural confirmation.

• Precursor Ion Scan: Q1 scans across a specified mass range, while Q3 remains locked on a single, characteristic product fragment ion. This setup helps rapidly pinpoint unknown parent molecules belonging to a common chemical class.

• Neutral Loss Scan: Both Q1 and Q3 scan concurrently, maintained at a fixed mass offset. This identifies any compound losing a common neutral functional group during fragmentation.

• Multiple Reaction Monitoring (MRM): The gold standard for ultra-trace quantification. Both Q1 and Q3 are locked on static, specific masses. Q1 isolates the predefined precursor ion, Q2 fragments it, and Q3 isolates a unique product ion. This sequential filtering pathway - referred to as an MRM transition (e.g., the transition of caffeine from precursor m/z 194 to product m/z 109) - ensures that even if an interfering matrix molecule shares the exact same retention time and precursor mass as the target analyte, it is highly unlikely to yield the exact same product fragment. Consequently, chemical noise is virtually eliminated, generating unprecedented signal-to-noise ratios (S/N) capable of routine femtogram-level (10^-15 g)) detection limits.



Components of GC-MS/MS

• First quadrupole (Q1): Functions like a standard mass spectrometer, selecting ions based on their m/z ratio.

• Collision cell (Q2): The selected ions are then fragmented by collision-induced dissociation (CID) using an inert gas (like argon or nitrogen), producing product ions.

• Second quadrupole (Q3): The fragment ions are analyzed to provide additional specificity and sensitivity.

• Ion Trap or Third-stage TOF: Some GC-MS/MS systems include an ion trap or a third-stage TOF for deeper structural elucidation. When analyzing ultra-trace targets or running restricted volumes via these advanced systems, deploying high-recovery micro-inserts like vial inserts within the autosampler vials ensures minimal sample loss and high-precision injections.

Applications of GC-MS/MS

• Target quantification: Measuring very low concentrations of specific analytes, which is critical for clinical diagnostics and toxicological confirmation.

• Complex mixture analysis: Identifying compounds in complex matrices such as blood, biological tissues, plant extracts, or heavy petroleum fractions where severe co-elution occurs.

• Environmental testing: Detecting trace emerging contaminants (such as ultra-low steroids, dioxins, or endocrine disruptors) that require high sensitivity.

• High-Throughput Pesticide Screening: Using fast GC methods and Multiple Reaction Monitoring (MRM) to detect hundreds of pesticides simultaneously in complex agricultural products like crops or fruits.

• Food Forensics and Traceability: Detecting adulterants and geographic origin markers via characteristic fragment ions.


Technical Comparison Matrix

To evaluate equipment capabilities or outsourcing options, laboratories must weigh distinct operational realities:

1. Sensitivity, Specificity, and Limits of Detection

GC-MS provides basic identification based on retention time and single-stage mass spectra, but frequently encounters barriers with complex mixtures where multiple background components co-elute. Its detection limits typically sit in the nanogram-to-picogram range, meaning it struggles to achieve accurate quantification at ultra-trace concentrations.

GC-MS/MS provides vastly superior sensitivity due to its ability to selectively isolate and analyze specific product fragment ions. By implementing MRM or Selected Reaction Monitoring (SRM), it effectively discards non-target ions before they hit the detector. This dramatically elevates the signal-to-noise ratio, making it capable of executing robust quantification at the femtogram level, which is a necessity for identifying emerging industrial pollutants or trace impurities.

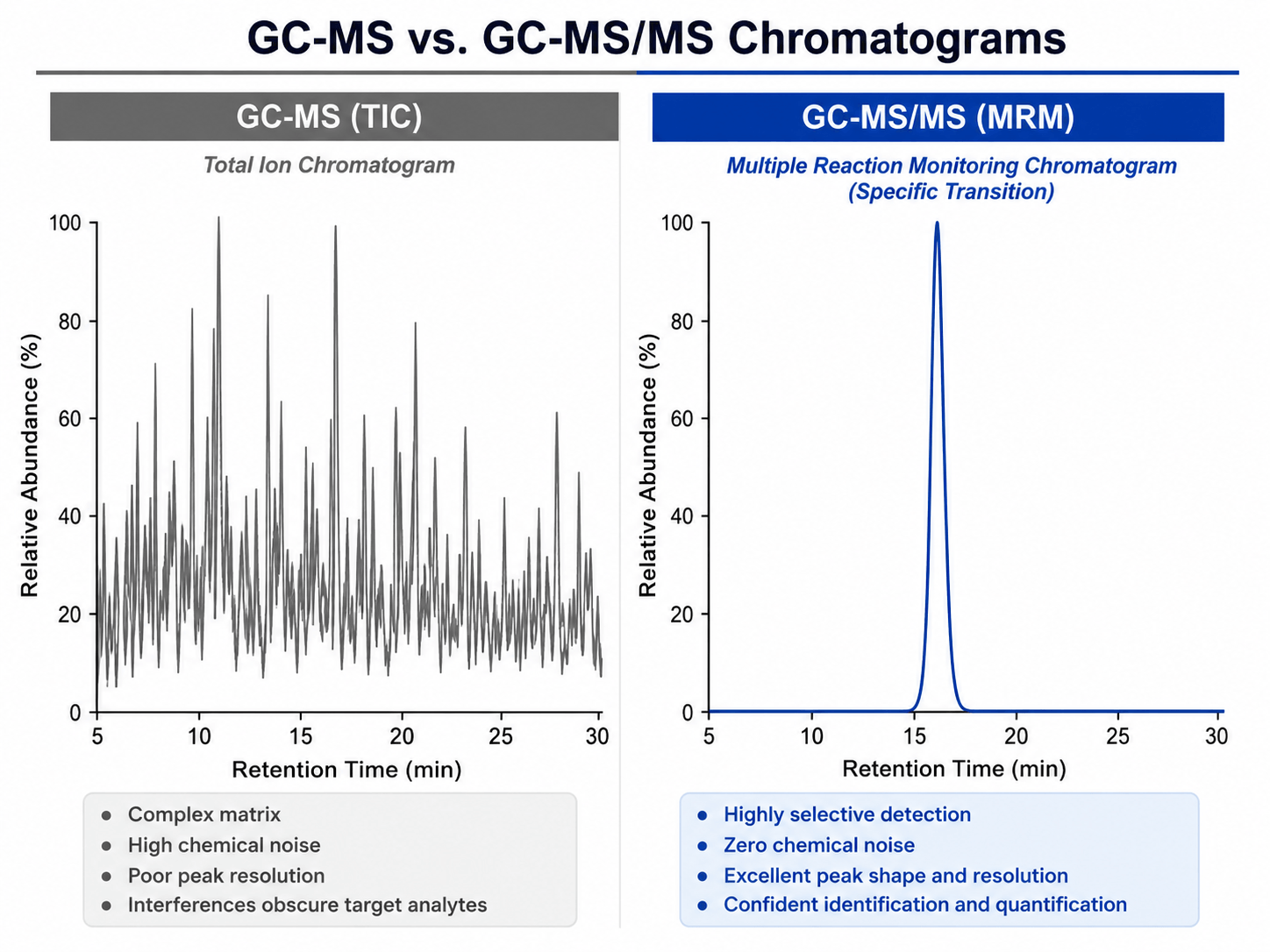

2. Overcoming Complex Matrix Interferences

When analyzing clean matrices, a standard GC-MS performs excellently. However, when samples are highly contaminated - such as biological tissue extracts, terpene-rich cannabis formulations, or fat-heavy food items - co-elution occurs. In a single quadrupole system, these overlapping matrices obscure the analyte's signal, often forcing laboratories to perform extensive, multi-step cleanups that risk reducing analyte recovery.

GC-MS/MS circumvents this issue. Because the instrument filters out background interference electronically through the Q1 to Q2 to Q3 pathway, sample preparation protocols can be significantly simplified and streamlined, saving labor and solvent costs without sacrificing spectral accuracy. Under ultra-sensitive tandem modes, minor contamination that would be invisible on a single quad system can cause severe signal issues. Utilizing high-purity, low-extractable non-sterile PTFE syringe filters protects the baseline from synthetic filter plasticizers. Furthermore, using specialized 1.5ml nd11 crimp neck vials provides an airtight, evaporation-proof seal that preserves highly volatile analytes during lengthy sequence runs. For robust mechanical injection, using a precise 10-425 screw cap prevents unexpected septa cores or seal failures.

3. Regulatory and Compliance Requirements

Modern regulatory landscapes are steadily moving toward demanding tandem mass spectrometry. International standards - such as US EPA Method 8270E for semi-volatiles, EU multi-residue pesticide regulations, and ICH M7 guidelines for genotoxic nitrosamine impurities - frequently dictate or strongly favor GC-MS/MS for legal compliance. Single-stage instruments rely heavily on library matching, which can occasionally trigger costly false positives when distinct compounds share similar primary fragments. Tandem MS confirms compound identity via highly unique, multi-point ion transitions, meeting stringent forensic and regulatory evidence criteria.

4. Operational Complexity and Investment Considerations

GC-MS is generally simpler to operate, involves fewer components, and requires faster method development cycles (typically 2 to 4 weeks). It presents a much lower initial capital investment and reduced ongoing maintenance costs, making it ideal for routine testing laboratories operating on strict budgets.

Conversely, GC-MS/MS systems carry a higher capital cost and elevated operational maintenance requirements. Operating a TQMS requires specialized operator training for optimizing collision energies and building extensive MRM method databases, which often extends method development timelines to 4 to 8 weeks. However, for specialized laboratories handling ultra-trace compliance assays, the exponential increase in data specificity and reduction in sample cleanup labor fully justify the added investment.


FAQ

• Q: What is the main difference between GC-MS and GC-MS/MS?

  • A: GC-MS/MS offers enhanced sensitivity and specificity by adding a second stage of mass spectrometry (MS/MS via a collision cell), allowing for more precise identification and quantitative tracking of compounds through specific ion transitions, especially in complex, dirty mixtures.



• Q: When should I choose GC-MS over GC-MS/MS?

  • A: GC-MS is entirely suitable for routine analyses of volatile organic compounds (VOCs), residual solvents, or purity assays where target concentrations are higher (above 1 ppb) and the sample matrix is relatively clean.



• Q: Are GC-MS and GC-MS/MS suitable for non-volatile compounds?

  • A: Both techniques are primarily designed for volatile and thermally stable organic compounds. Non-volatile or highly polar macromolecular compounds typically require chemical derivatization to increase volatility, or they should be analyzed using liquid chromatography-mass spectrometry(LC-MS).



• Q: How do the costs compare between GC-MS and GC-MS/MS?

  • A: GC-MS systems involve a significantly lower initial investment and lower operational maintenance overhead. GC-MS/MS instruments are high-capital investments that demand specialized training and clean laboratory gas environments, but they offer unparalleled performance that reduces sample processing labor.



• Q: What is the typical detection limit of GC-MS compared to GC-MS/MS?

  • A: The typical detection limit of a standard single-quadrupole GC-MS operates in the nanogram-to-picogram range. In contrast, a finely optimized GC-MS/MS utilizing MRM mode can comfortably achieve femtogram-level (10^-15 g) detection limits, even when dealing with heavy background interferences.



• Q: What is the maximum molecular weight GC-MS can analyze?

  • A: Because samples must be successfully vaporized in the heated inlet without breaking down, GC-MS typically analyzes molecules with molecular weights up to roughly 800 Da. With specialized high-temperature columns and derivatization agents, this envelope can expand to approximately 1000 Da. For compounds larger than this, LC-MS is recommended.


Conclusion

In summary, both GC-MS and GC-MS/MS are powerful analytical techniques that play a fundamental role across modern scientific fields. While GC-MS remains the ideal baseline workhorse for routine screening, identification of unknown compounds, and simpler matrices, GC-MS/MS provides an unmatched leap in sensitivity, specificity, and chemical noise reduction through tandem mass spectrometry. The ultimate choice depends on your specific data requirements, regulatory expectations, sample complexity, and budgetary considerations.

References and Technical Standards

• Snow, N. H. (2021). Flying High with Sensitivity and Selectivity: GC-MS to GC-MS/MS. LCGC Europe, 34(2), 105-116.

• McLafferty, F. W., & Turecek, F. (1993). Interpretation of Mass Spectra (4th ed.). University Science Books.

• Schulte, H. J., Baier, H. U., Moreau, S., & Bollig, K. (2015). Fast GC-MS/MS Analysis Of Multicomponent Pesticide Residues (360) In Food Matrix. Shimadzu Technical Whitepaper.
